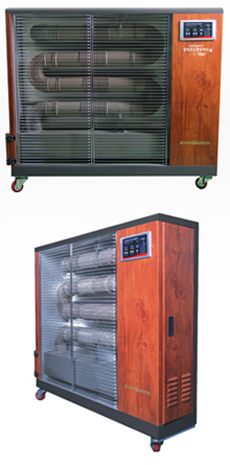

Features of smart far-infrared light pellet heater

•


• 1. More than 50 percent fuel saving compared to oil heaters

  2. Good for health, discharging human wastes and toxic metals
      and promoting metabolism.

  3. Elegant interior environment is set with high quality
      boiler design.

  4. Eco-friendly and almost no emission of smoke by adopting
      high efficiency burner.

  5. Low ash generation (less than 1%) and cleaning once a week
      (when 1st class fuel is used)

  6. Automatic fuel feeding, automatic ignition and automatic indoor
      temperature control are achieved by the application of the
      controller with artificial intelligence micom.

  7. The state-of-the-art safety systems are applied (dual overheating
      detection, backfire prevention, tilt sensing, fuel
      bottleneck detection, etc.)

  8. The boilers can be used in a variety of places including
      churches, pensions, homes, offices, factories, golf courses
      and restaurants.

Specifications of smart far-infrared light pellet heater- 25 and 10 Smart

Classification	Pellet Heater-25	Pellet Heater-10
Product size (Width*Thickness*Height)	1340*530*1180	850*500*1050
Heating Area (㎡)	130*231(40~70 Pyung)	50*66(15~20 Pyung)
Fuel consumption (Kg/H)	2.5 ~ 4.5	1.2 ~ 2.0
Ignition Method	Automatic	Manual
Hopper Capacity(kg)	70	12

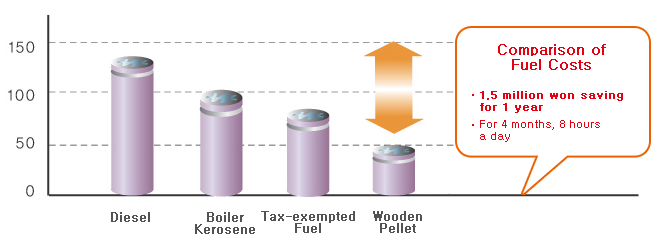

Comparison of Fuel Costs(Based on 20,000kcal/h)

Classification	Diesel	Boiler Kerosene	Tax-exempted Fuel	Wooden Pellet
Heat generation	9,200 kcal/ℓ	8,700 kcal/ℓ	9,200 kcal/ℓ	4,500 kcal/kg
Fuel price(Won)	1,750/ℓ	1,350/ℓ	1,100/ℓ	340/kg
Consumption per hour	2.2ℓ	2.4ℓ	2.2ℓ	4.5kg
Consumption(8 hours a day)	17.6ℓ	19.2ℓ	17.6ℓ	36kg
Heating cost per day (won)	30,800	25,920	19,360	12,240
Heating cost per 4 months(won)	3,696,000	3,110,400	2,323,200	1,468,800
Comparative values	118.8	100	74.7	47.2
