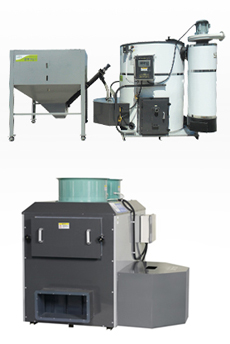

Features of the Smart Pellet Boilers/Warm Air Circulators for Farmhouses and Busines Sites

•

• 1. The highest level of thermal efficienc

  Official certification tests by the Agricultural Machinery Commercialization Foundation shows the 87.6% (k-200)of thermal efficiency. The boiler is designed as vertical 3 pass heat exchanger type so that high thermal efficiency can be achieved.

  2. Low-grade fuel can be used

  Special burner is adopted to burn the clinker generated in the combustor due to the use of low-grade fuel

  3. Stable Control

  The stability is already proven with adoption of double backfire detection and overheat protection system

  4. Large hopper

  Since the large silo with the capacity of 4~6 tons is installed, fuel can be easily fed automatically without using inconvenient fuel bags.

Specifications of the Smart Pellet Boilers/Warm Air Circulators for Farmhouses and Busines Sites

Classification		Specifications
Models		K-100	K-200	K-350A	K-600	KSP-150
Fuel		Wooden pellet Class 1 ~ 2(6×32mm)
Heating output (kcal/h)		124,000	241,000	364,200	668,700	81,200
Hot water power (ℓ/h)Δ40℃		3,000	5,000	7,250	15,000
Size(W×I×H)/ Weight(kg)		1880×2260×1540/ 1,350	1880×2260×1910/ 1,850	1880×2260×2230/ 2,350	2150×2930×2400/ 3,450	1675×2260×1693/ 790
Fuel consumption (kg/h)		35~42	57~67	82~101	168~185	27
Heating inlet and outlet		65A	65A	65A	100A
Burner	Type	Side supply
	Air blower	AC220V/380V (3 phases) 1 Hp	AC220V/380V (3 phases)2 Hps		AC220V/380V (3 phases)5 Hps	AC220V/380V (3 phases)1 Hp
	Ignition heater	SIN Heater, 1200W			SIN Heater, 2400W	SIN Heater, 1200W
	Overheating	92 degrees
Flue		250×2 Flexions	250×2 Flexions	300×2 Flexions	350×2 Flexions	200×2 Flexions
Watering Capacity(ℓ)		1,100	1,300	1,500	2,500
Heating area		10.5	12.3	13.9	38.0	10.2
Hopper	Size(W×L×H)	1450×1450×1850
	Hopping Capacity	1200kg				1600kg
Efficiency (Total generated heat)		Not less than 87%				Not less than 71%
Remarks		220V/380V/3-phase 4 wire type

* This information may be changed for the improvement of product performance or appearance without notice.
