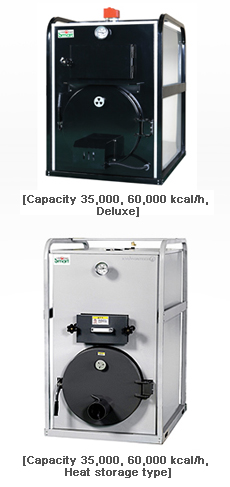

Features of the fuel wood boiler

•


• 1. The boiler with the least fuel cost

  Heating and hot water generation are enjoyable with no worry about fuel cost. The boiler can be used for a long time since it has a structure that can withstand pressure (patent pending).

  2. 3 pass, high thermal efficiency and convenient boiler 3Pass

  Horizontal 3 Pass burning method allows no heat to be lost through the flue, hence smaller amount of wood is enough for common heating and hot water generation. Wood supply once every morning and evening is enough.

  3. Automatic damper mounted boiler

  Automatic air damper controls the air feeding so that no manual adjustment is necessary to prevent overheating.

  4. Easy cleaning

  Water extracted from fuel wood is recovered separately and soot or tar is easily cleaned.

  5. Heat storage

  Heat stored in the nighttime can be used in the daytime for the operation of the boiler.

  6. Variety of applications

  The boiler is suitable for any place where heating or hot water supply is needed including houses, country houses, pensions, saunas, greenhouses and fish farms.

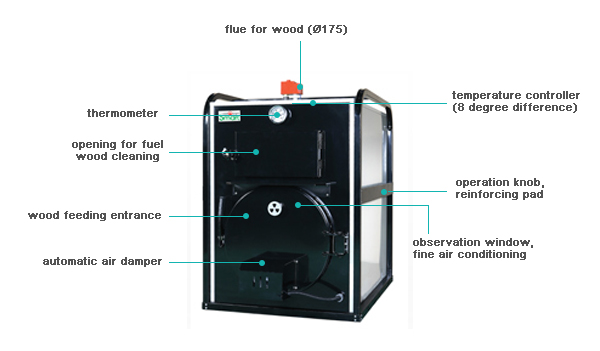

Parts of the fuel wood boiler

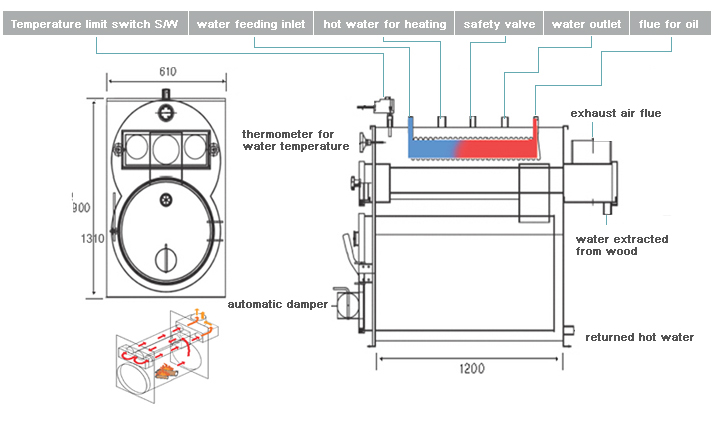

Sturcture of the fuel wood boiler

Specifications of the fuel wood boiler

Classification	Storage Type	Storage Type Heat storage type	Storage Type Heat storage type	Storage Type	Storage Type
Oil capacity(kcal/h)	KSW-30S	KSW-350D KSW-35R	KSW-60S KSW-60D KSW-60R	KSW-120S	KSW-250S
Fuel	Fuel wood, briquette, waste wood
Heating output	15000~20000	20000~30,000	30,000~40,000	60,000~80,000	120,000~150,000
Hot water output	15000~20000	20000~30,000	20,000~30,000	30,000~40,000	60,000~80,000
Size(W*L*H)	590× 1015× 1300	780× 1100 ×1550	740×1200×1450	950×1900×1800	950×2100×1800
		780×1350×1550	880×1300×1550	330m2(100 Pyungs)	660m2(200 Pyungs)
			880×1550×1550
Heating Area Heating Area	66m2(20평)	99m2(30 Pyungs)	132m2(40 Pyungs)
Heating inlet and outlet	25A	25A	25A	32A	50A
Hot Water inlet and outlet	15A	15A	15A	20A	20A
Flue Spec.	150	150	175	250	300
Maximum Operating temperature	1KG/M2
Operating voltage	220V/60HZ
Specification of Safety Valve	2.5kg/cm2

Heat exchanger of the fuel wood boiler

Classification	Heat exchanger of the fuel wood boiler
Heat exchanger	Circular 3 pass. Wall thickness of the secondary combustion chamber : 4.0 t Heat transfer area : 3.2m2
Drawing
Remark	High efficiency and good hot water heat exchange. Damper is made of steel and has enough distance from the door to provide safety against heat.
